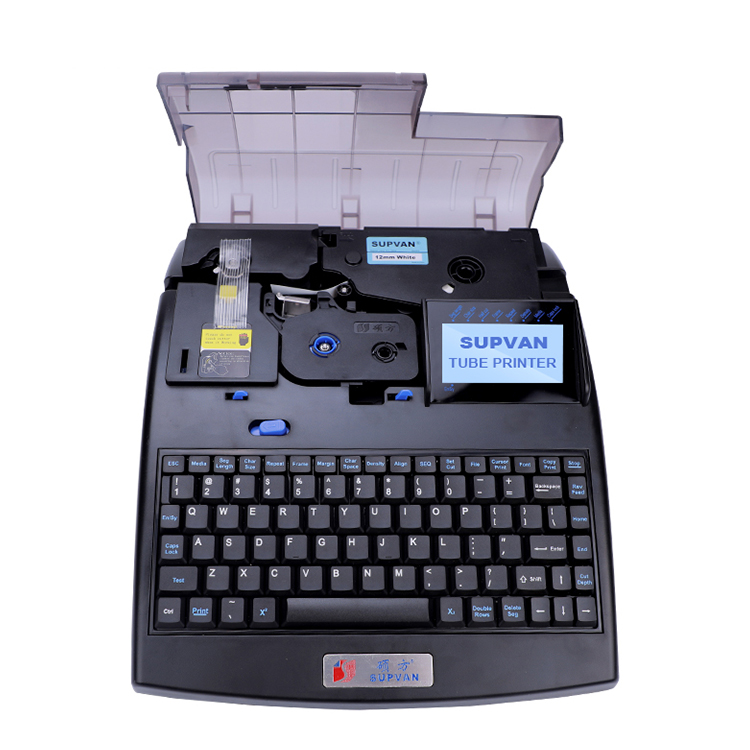

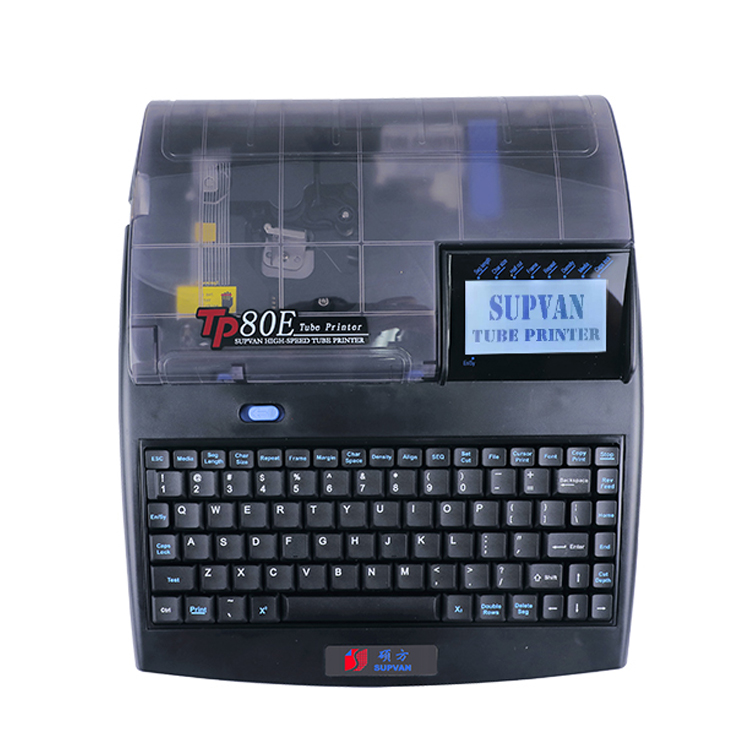

Supvan tube printer TP80E
Supvan tube printer TP80E

Different printing materials:tube/ heat shrink tube (2.5-6mm diameter), label ( 6mm/9mm/12mm width), plate 4mm/4.6mm/9mm. Large white back-lit LCD display, up to 10 lines display on TP80E. Automatic feed/clean/ribbon pre tighten/half cut/full cut. 85-key standard keyboard makes operation easily. Repeat, sequence and copy print functions can save your time. USB PC link, professional editing software. Large internal storage capacity can store up to 200 files.

Supvan tube printer TP80E

Different printing materials:tube/ heat shrink tube (2.5-6mm diameter), label ( 6mm/9mm/12mm width), plate 4mm/4.6mm/9mm. Large white back-lit LCD display, up to 10 lines display on TP80E. Automatic feed/clean/ribbon pre tighten/half cut/full cut. 85-key standard keyboard makes operation easily. Repeat, sequence and copy print functions can save your time. USB PC link, professional editing software. Large internal storage capacity can store up to 200 files.

Supvan tube printer TP80E

Different printing materials:tube/ heat shrink tube (2.5-6mm diameter), label ( 6mm/9mm/12mm width), plate 4mm/4.6mm/9mm. Large white back-lit LCD display, up to 10 lines display on TP80E. Automatic feed/clean/ribbon pre tighten/half cut/full cut. 85-key standard keyboard makes operation easily. Repeat, sequence and copy print functions can save your time. USB PC link, professional editing software. Large internal storage capacity can store up to 200 files.

DETAILS



PARAMETER
Model:

TP80E

Printing method:

Thermal transfer

Resolution:

300dpi

Printing speed:

Tube:40pcs/min,20mm/pcs、Label:40pcs/min,20mm/pcs

Ink Ribbon:

Black:100m,White:80m,Red:80m

Input modes:

Alphanumeric, Symbol, English character input

Character size :

Label:1-7、Tube:1-5

Repeat:

1-200

Media cutting method:

Automatic half-cutting, Automatic full-cutting

Styles:

Frame, Underline, Superscript, Subscript

Tape type:

Tube, Heat shrink tube, Label, Plate

Keyboard:

85keys standard keyboard

Dimension(L×W×H):

320mm*280mm*100mm

Weight:

3.2kg(printer only)

Power supply:

AC adapter(Input voltage: AC 100V-240V 50/60Hz)

Display:

White back-lit LCD display; Single and double column display; Up to 5-line editing interface

Internal memory:

Up to 200 files 200 paragraph/file (12,000,000 characters)

External memory:

SD card and card reader

Operating environment:

15℃-35℃

PC interface:

USB2.0 Full-speed, Professional editing software

Tube:

PVC tubeΦ2.5-Φ6mm、Heat shrink tube Φ2.5-Φ6mm

Label:

Exclusive cassettes(White, yellow, silver)、Widths:6mm, 9mm,12 mm.Length:16m

Insert Stick Plate:

Width:4mm, 4.6mm, 9mm
